Product Details

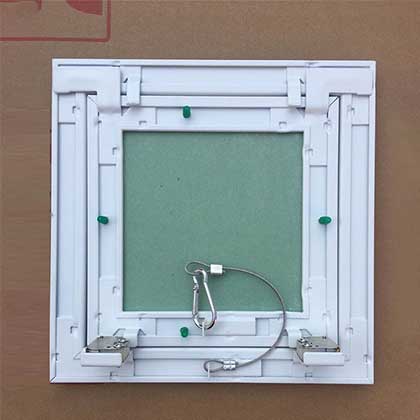

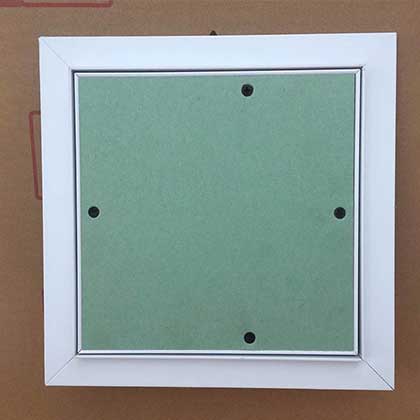

The access panel consists of a welded aluminum frame and is available with or without 1/2″ (12.7 mm) or 5/8″ (15.9 mm) inlayed drywall and two latches (comes standard with inlay and touch latches) Both an outer and an inner frame assembly consists of high grade aluminum which is bonded with a special welding process. For sizes 12″ x 12″ (305 mm x 305 mm) and up the access panels are equipped with a safety-system to prevent accidental opening. This safety system must be reattached if the hatch is removed. The reveal of 1/16 of an inch (1.59 mm) is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring loaded latch side. Application: Ceilings and walls of building, hotels, shopping malls, hospital, school, office, house Central air conditioning system Access ductwork or pipe work above the light fixtures, vents, fire fighting pipeline, bathroom pipeline, etc.
Specifications
Materials: Aluminum frame with moisture resisntact gypsum board
Size: 12″ x 12″ (305 mm x 305 mm) 24″ x 24″ (600 mm x 600 mm)
Model No: HGB008
